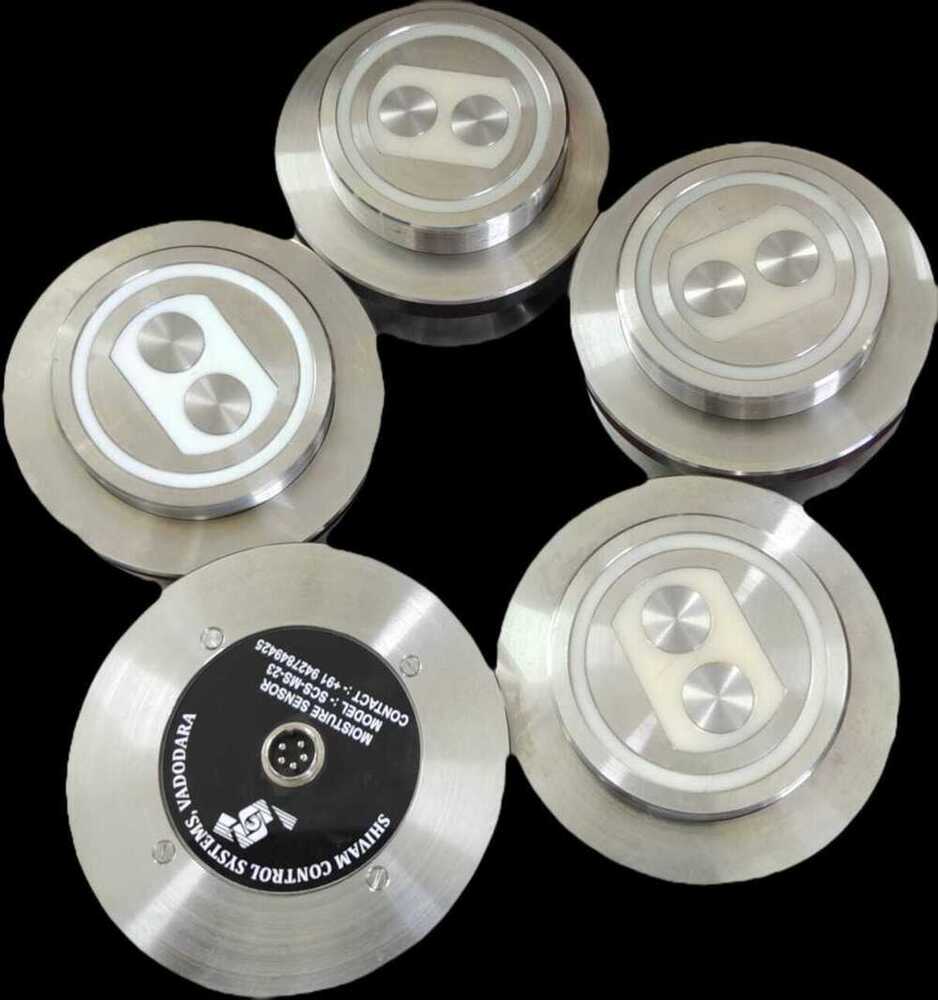

SAND MOISTURE SENSOR (SCS-MS-23)

Name: SAND MOISTURE SENSOR (SCS-MS-23)
Brand: SHIVAM CONTROL SYSTEMS
Price: 150000 INR
Availability: InStock

150000 INR/Unit

Get a Price/Quote

Product Details:

Response Time <2 Seconds
Equipment Type Sand Moisture Sensor
Max Height 200mm (Probe Length)
Application On-line / Laboratory Measurement of Sand Moisture
Test Range 0 to 15% Moisture Content
Resolution 0.1%
Measuring Range 0 to 15% Moisture
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

SAND MOISTURE SENSOR (SCS-MS-23) Price And Quantity

Minimum Order Quantity 1 Piece
Price 150000 INR/Unit

SAND MOISTURE SENSOR (SCS-MS-23) Product Specifications

Operating Voltage 24V DC (Sensor), 230V AC (Controller)
Power Supply 230V AC, 50Hz
Temperature 0C to 60C Operating Range
Automation Grade Automatic
Humidity 5 to 95% RH (Non-condensing)
Usage Industrial Laboratory
Machine Weight 2.5 kg (Approx)
Features Corrosion Resistant, High Sensitivity, Maintenance Free
Accuracy 0.5% of Full Scale
Control Mode Digital / Automatic
Resolution 0.1%
Frequency 50Hz
Measuring Range 0 to 15% Moisture
Specimen Size Suitable for Sand Sample
Response Time <2 Seconds
Equipment Type Sand Moisture Sensor
Max Height 200mm (Probe Length)
Application On-line / Laboratory Measurement of Sand Moisture
Test Range 0 to 15% Moisture Content
Number of Specimens Single Probe Operation
Port Size 1/2 inch BSP
Display Type LCD Digital Display
Mounting Type Flange or Probe
Capacity Up to 1000g Sample
Interface Type Analog Output 4-20mA, RS485 (Optional)

Product Description

Technical specification:

INPUT : 12- 24VDC

OUTPUT : MODBUS

BODY : SS316

DIAMETER : 88 MM

LENGTH : 70 MM

FIXING : 120 MM

Construction : STAINLESS STEEL

MOISTURE SENSING : FOR BULK MATERIAL THE SENSOR WILL MEASURE UP TO SATURATION.

Reliable, Precise Moisture Measurement

The SCS-MS-23 utilizes a capacitance-based method to deliver accurate readings for sand moisture content. Its resolution of 0.1% and 0.5% accuracy of full scale help ensure consistent quality monitoring in industrial and laboratory environments. The factory calibration guarantee means dependable performance right out of the box, with optional user calibration to adapt to specific sample types as needed.

Durable Construction and Flexible Installation

Manufactured using corrosion-resistant stainless steel and housed within an IP65-rated enclosure, the sensor is built to withstand harsh environments. Its flexible mounting options allow for flange or probe installation, and the device fits seamlessly in both laboratory setups and on-line process lines. The standard 3-meter cable provides convenience during installation and operation.

Intuitive Operation and Fast Response

Equipped with a digital LCD display and automatic control mode, the SCS-MS-23 makes moisture monitoring simple and effective. The sensor is maintenance-free and offers a rapid response time of less than two seconds, supporting real-time decision-making in critical processes. With analog output and optional RS485 interface, it integrates effortlessly into existing data systems.

FAQ's of SAND MOISTURE SENSOR (SCS-MS-23):

Q: How does the SCS-MS-23 Sand Moisture Sensor measure moisture in sand samples?

A: The SCS-MS-23 uses a capacitance-based measurement principle to determine moisture content. This technique allows for quick and precise detection of changes in sand moisture, making it suitable for both laboratory and on-line industrial applications.

Q: What benefits does the stainless steel sensor material and IP65 enclosure provide?

A: Stainless steel offers corrosion resistance and durability, ensuring long-term performance in challenging environments. The IP65-rated enclosure protects the sensor from dust and water ingress, making it suitable for use in both industrial and laboratory settings.

Q: Where can the SCS-MS-23 sensor be installed and used?

A: This sensor can be installed in both on-line process environments and laboratory setups. Its flange or probe mounting options provide flexibility, and the 3-meter cable simplifies integration into various configurations.

Q: What is the calibration process for the SCS-MS-23 sensor?

A: The sensor is factory calibrated for immediate use and accuracy. However, user calibration is possible if adjustment is required for specific sand sample types or changing operational conditions.

Q: How quickly does the sensor deliver moisture readings, and what is the response time?

A: The SCS-MS-23 provides a response time of less than two seconds, ensuring fast, real-time moisture measurement for efficient process control and laboratory analysis.

Q: What output signals and interfaces does the sensor support?

A: The device offers a standard analog output signal (4-20mA) for easy integration with control systems. Additionally, it supports an optional RS485 interface for advanced connectivity and data communication.

Q: What specimen size and capacity are supported by the SCS-MS-23?

A: The sensor is designed for single probe operation and is suitable for sand samples up to 1000g, optimizing moisture measurement for both small and large specimen requirements.
